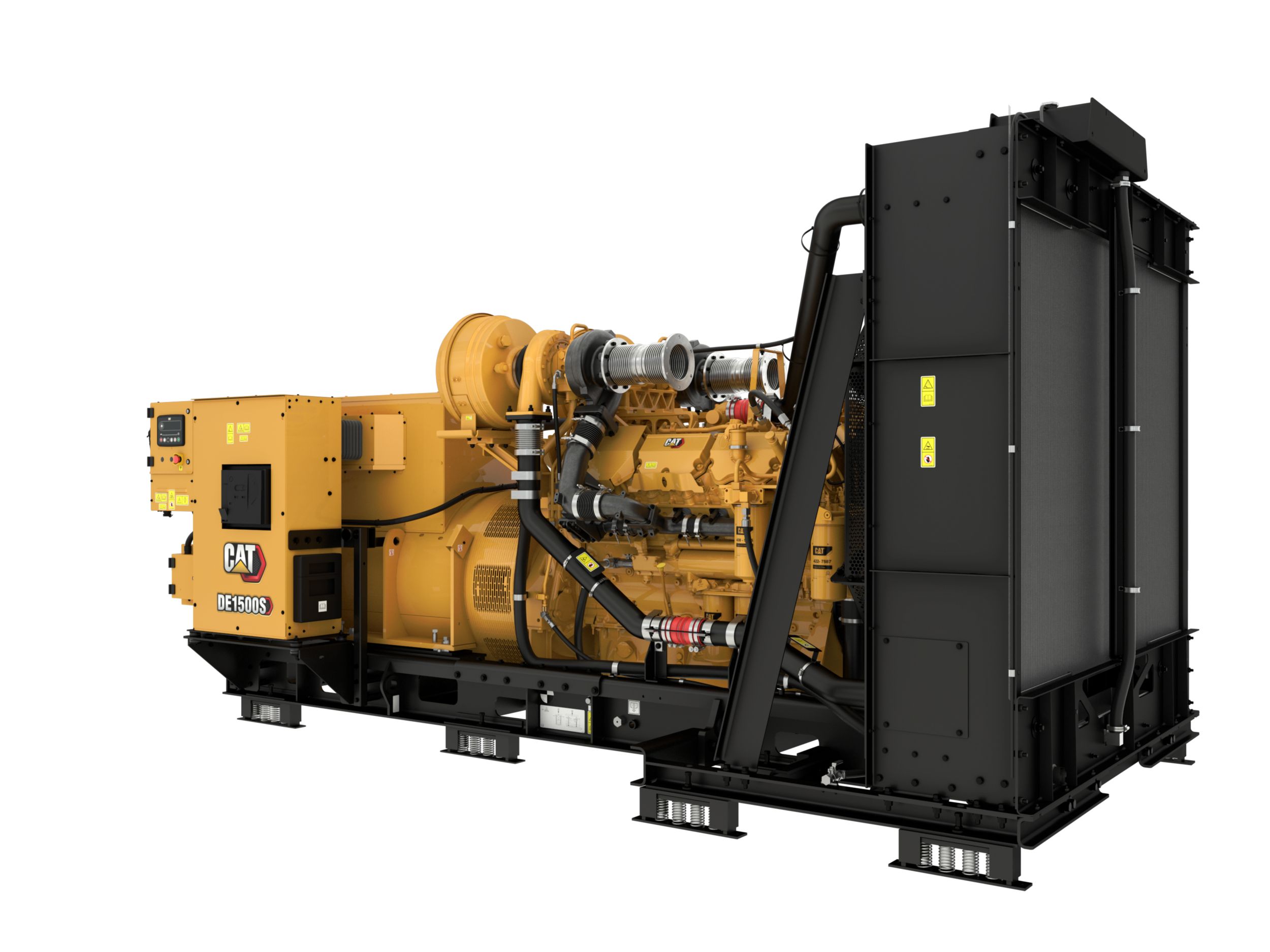

C32B DE1500S Diesel Generator Set
C32B DE1500S Diesel Generator Set
C32B DE1500S Diesel Generator Set
C32B DE1500S Diesel Generator Set

Producing reliable power at 1500 ekW at 60 Hz, the Caterpillar DE1500S diesel generator set is made to meet the needs of your standby mission critical applications with the new C32B engine with best-in-class power density combining a compact and lighter design.

Get Pricing
Call 877-OWNACAT
Generator Set Specifications
Standby Rating 1500 ekW
Emissions/Fuel Strategy Low BSFC
Voltage 400 to 415 Volts
Frequency 60 Hz
Speed 1500 rpm
Duty Cycle Standby, Mission Critical
Maximum Rating 1500 ekW
Minimum Rating 1500 ekW
Mission Critical 1500 ekW
Engine Model C32B TA, V12, 4-Stroke Diesel
Bore 5.7 in
Stroke 6.4 in
Displacement 1959 in³
Compression Ratio 14:1
Aspiration TA
Fuel System EUI
Governor Type ADEM™ A5
Length - Minimum 185.43 in
Length - Maximum 185.43 in
Width - Minimum 89.72 in
Width - Maximum 89.72 in
Height - Minimum 100.43 in
Height - Maximum 105.71 in
Dry Weight - Genset (minimum) 18832 lb
Dry Weight - Genset (maximum) 20155 lb
Cat Generator Set Package


  • Cat generator set packages have been fully prototype tested
    •
  • Conform to ISO 8528-5 steady state and transient response requirements

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements

  • Designed to operate in standard ambient temperatures up to 50�C (122�F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities

CE and AEC Certifications

  • Components used in the generator set are selected at the design stage to provide optimum package performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
